Boiler Ash Handling Conveyor
Heavy-duty Boiler Ash Handling Conveyor engineered for continuous ash removal, built as a reliable Ash Conveyor for Husk Fired Boiler systems in oil mill and solvent extraction plants.
Boiler Ash Handling System
Continuous Ash RemovalHusk-fired and biomass-fired boilers generate a steady flow of bottom ash that has to be removed without interrupting combustion. Manual ash removal means regular shutdowns, high labor cost, and dust exposure for plant staff. Super Techno Engineers' Boiler Ash Handling Conveyor pulls ash away from the boiler grate continuously, engineered around your boiler's firing rate and ash generation volume rather than sold as a generic off-the-shelf unit.

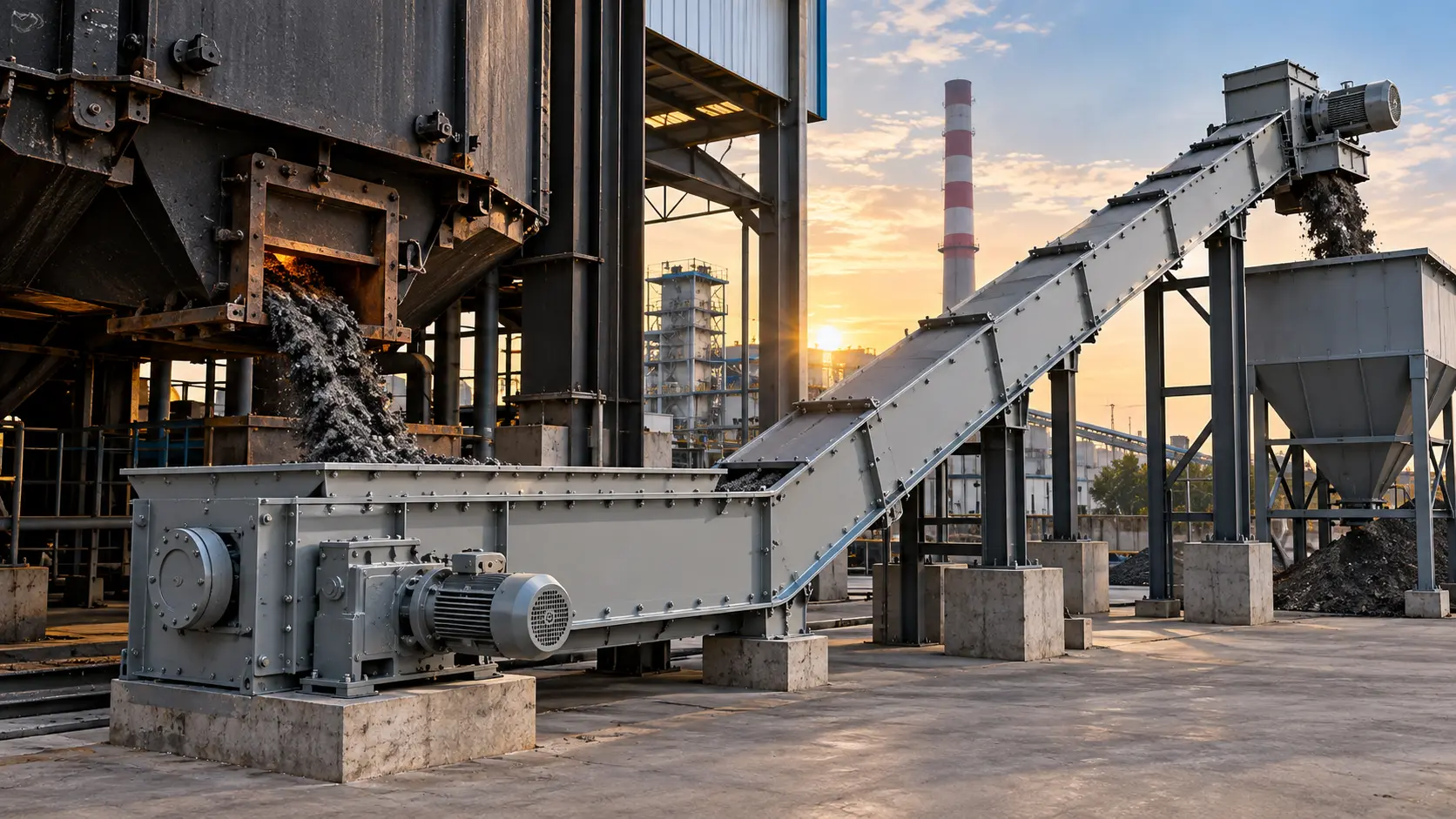

How Our Ash Handling Conveyor Works

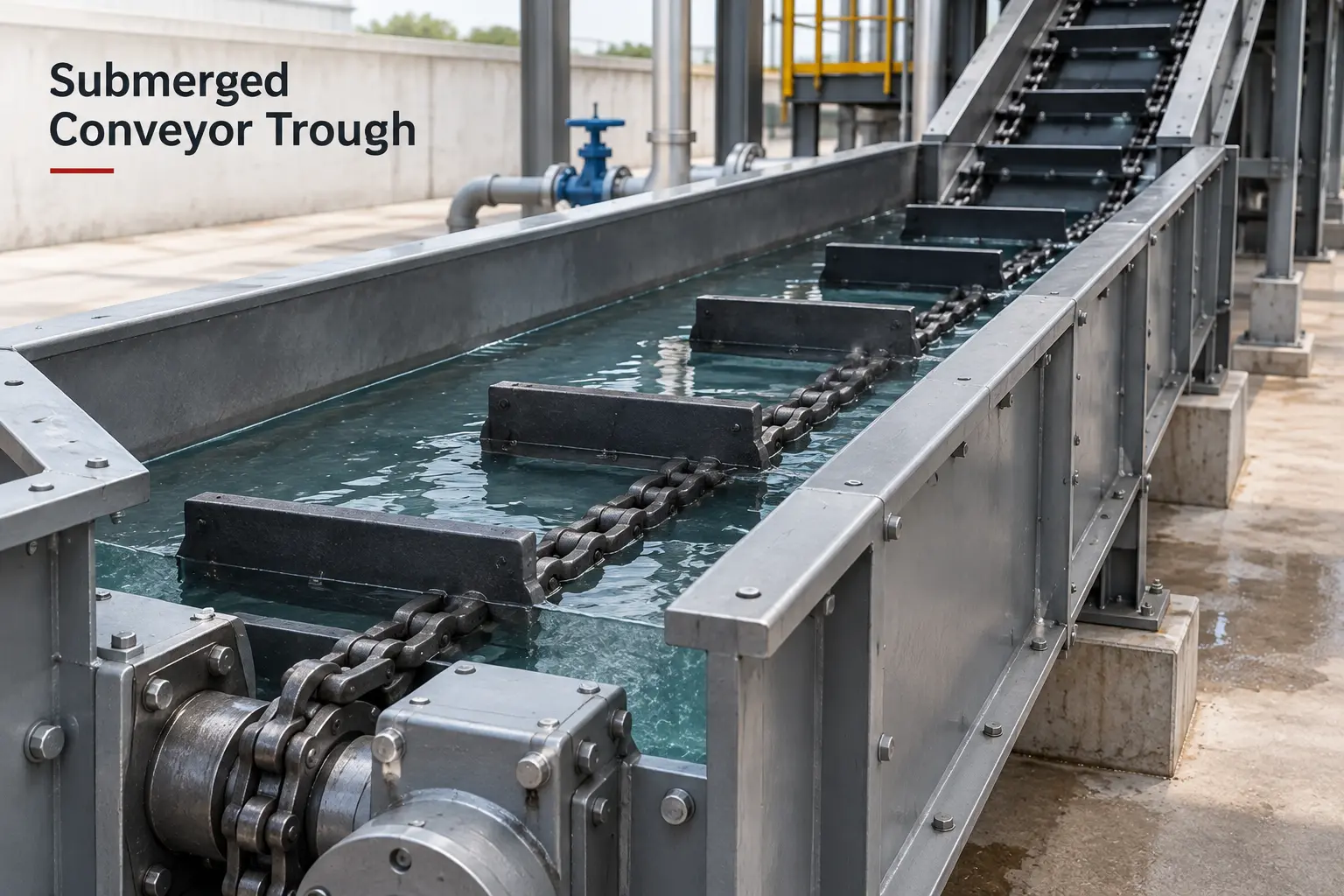

Hot ash drops from the boiler grate into a water-filled trough at the base of our Submerged Ash Conveyor, where it is instantly quenched and cooled. A heavy-duty chain fitted with scraper flights then drags the cooled ash along the trough and up an inclined section to a collection point or storage bin.
The submerged design also acts as a water seal, stopping false air from entering the boiler through the ash discharge point, which keeps combustion efficiency stable.
For plants that prefer dry ash handling instead of a water trough, we also build a Drag Chain Ash Conveyor and Scraper Chain Ash Conveyor configuration, where flights mounted on a chain loop pull dry ash along an enclosed trough to the discharge end.
-
check_circleInstantly quenches and cools hot ash (Submerged type).
-
check_circleSubmerged trough acts as a water seal preventing false air ingress.
-
check_circleDry ash handling configurations available.
Ash Conveyor for Husk Fired Boiler
Most solvent extraction and oil mill plants run husk or biomass-fired boilers sized well below the scale of thermal power stations, so their ash handling needs are different too.
Our Ash Conveyor for Husk Fired Boiler applications is built for the lower, steadier ash volume typical of these boilers, not adapted from a large power plant submerged conveyor.
This keeps the conveyor compact enough to fit your existing boiler house layout while still handling ash without manual intervention.
Operational Capabilities
Proven Performance
No Manual Shutdown. Removes ash without stopping the boiler for manual cleaning cycles.
Water Seal Design. Submerged trough blocks air ingress at the ash discharge point, protecting combustion efficiency.
Alloy Steel Construction. Chain and flights built to handle abrasive ash with minimal maintenance.
Equipment Integrity
Build Quality

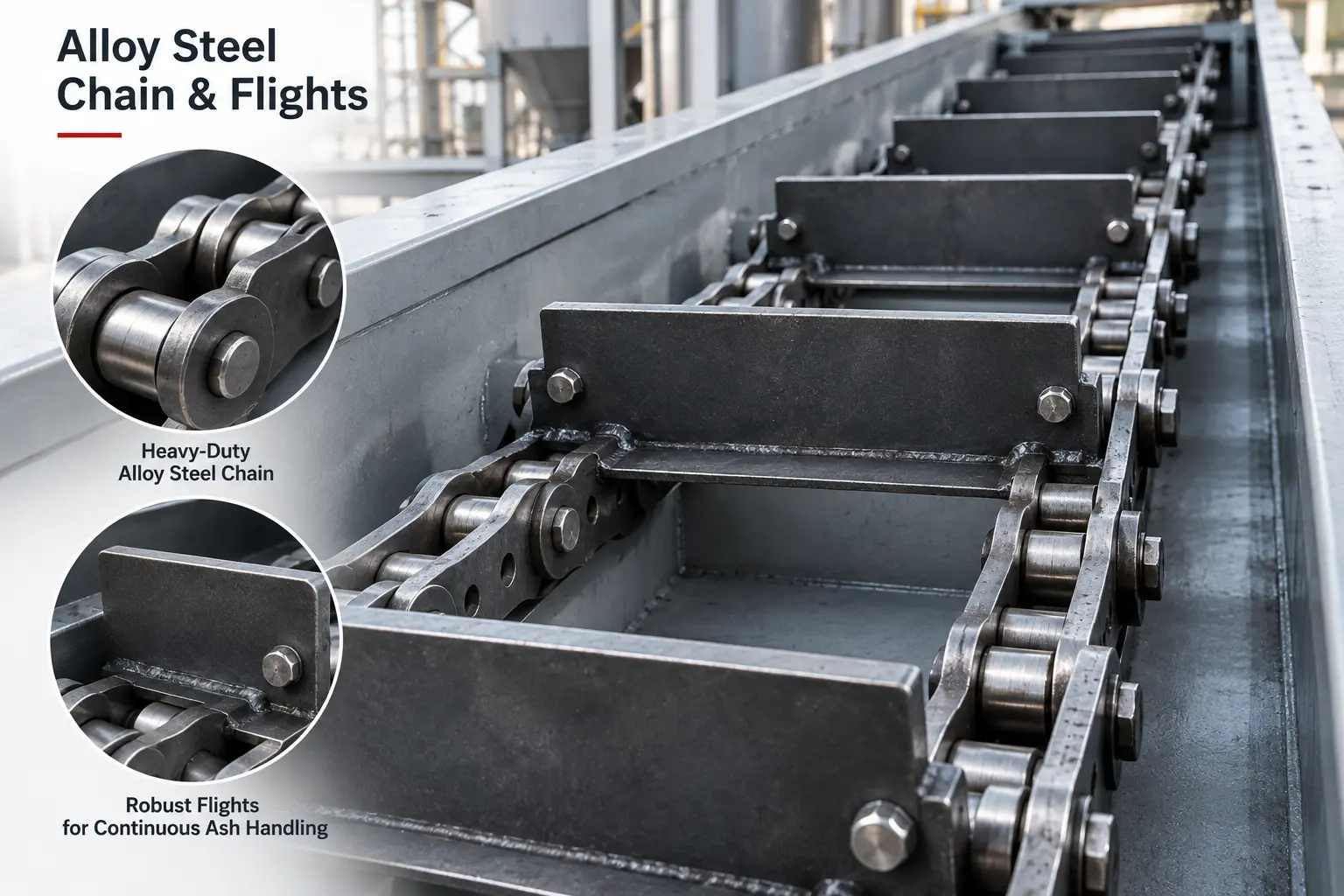

Chain and scraper flights are fabricated from high-tensile alloy steel to withstand continuous contact with hot, abrasive ash.
The trough is built from mild steel or stainless steel with wear-resistant lining at high-abrasion points for long operational life.
The submerged water seal section is designed to hold a consistent water level even as ash volume varies with boiler load.

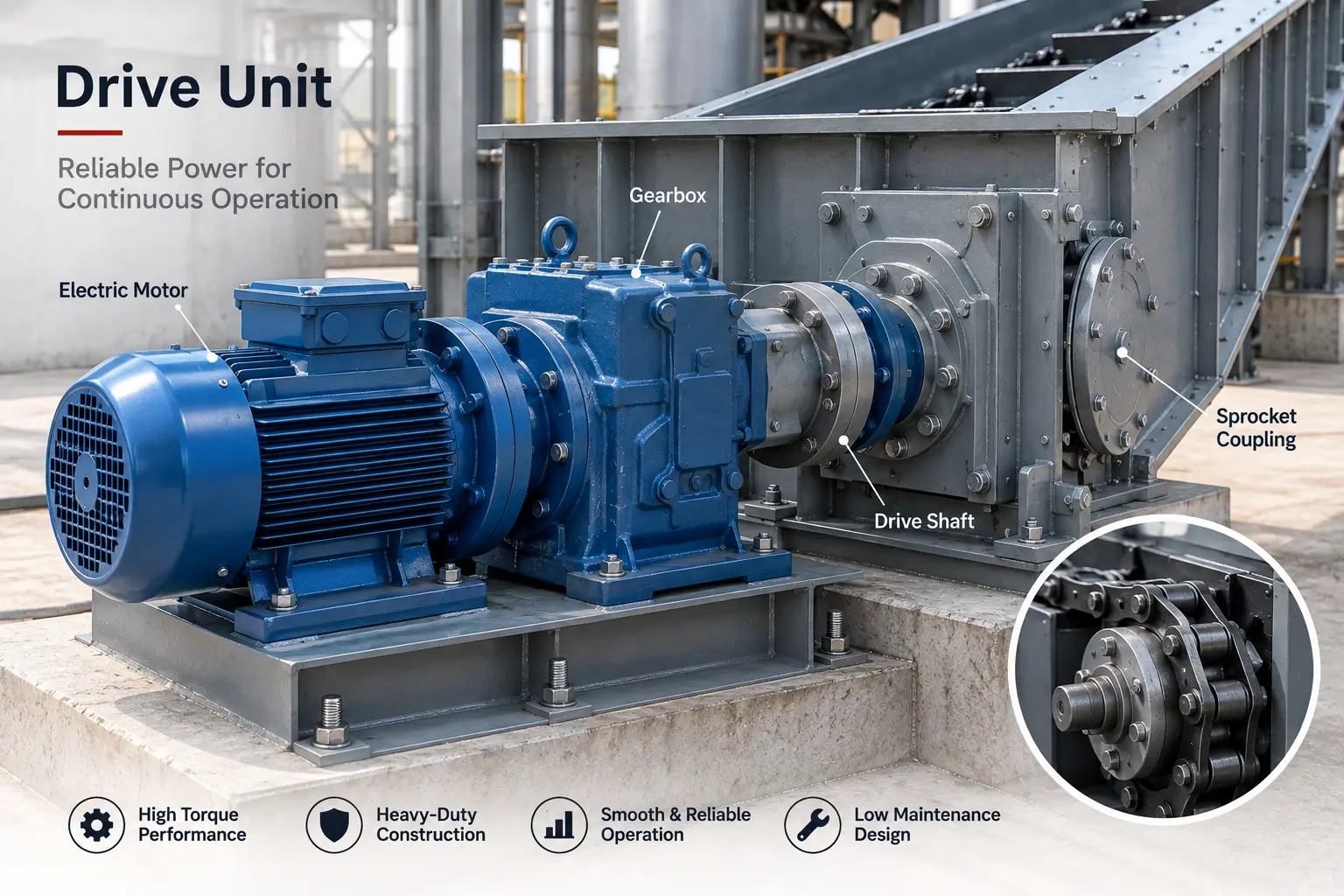

Drive units use a geared motor, with VFD control available where you need to match conveyor speed to boiler firing rate.
Data Sheet
Technical Specifications
Exact dimensions and configuration depend on your boiler's ash generation rate and available boiler house layout.
| Parameter | Description / Value |
|---|---|
| Conveyor Type | Submerged Ash Conveyor, Drag Chain Ash Conveyor, or Scraper Chain Ash Conveyor |
| Ash Handling Capacity | Sized to your boiler's firing rate and fuel type |
| Chain Material | High-tensile alloy steel |
| Trough Construction | MS or SS with wear-resistant lining at high-abrasion points |
| Ash Type | Boiler Bottom Ash Conveyor, fly ash compatible on request |
| Water Seal | Submerged trough section prevents false air ingress |
| Drive | Geared motor, VFD speed control available |

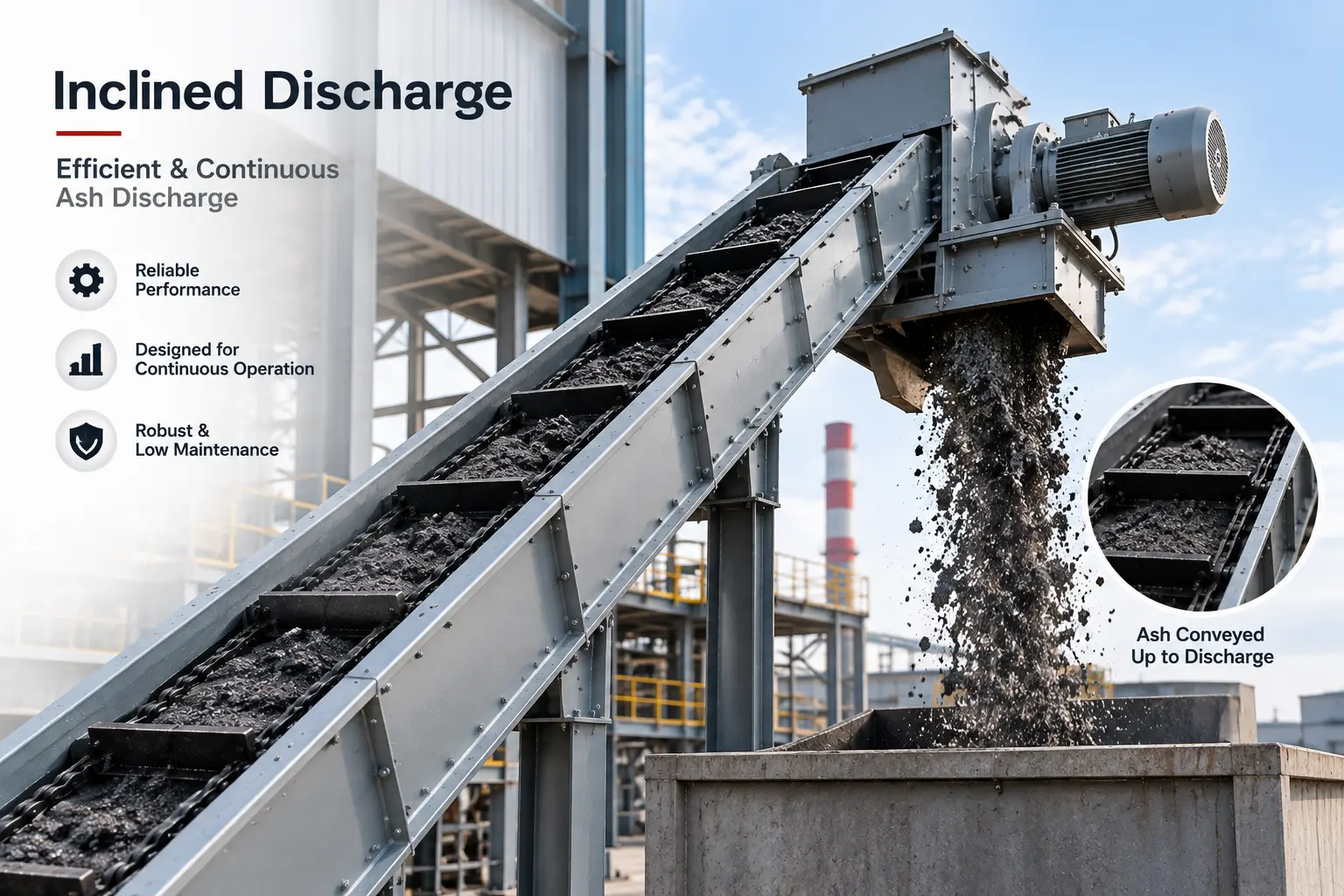

| Discharge | Horizontal run with inclined discharge to bin or storage pit |
Implementation Protocol
How We Work
We ensure your ash handling system is designed for your specific needs, providing efficient and reliable operation.
Ash Load Assessment
We review your boiler's fuel type, firing rate, and ash generation volume to determine the conveyor type and capacity your plant needs.
Conveyor Design
Our engineers finalize the trough length, incline, chain speed, and choice between submerged or dry ash handling based on your boiler house layout.
Fabrication & Commissioning
The conveyor is fabricated, tested for chain tension and seal integrity, then shipped and installed at your site with commissioning support.
Why Choose Super Techno Engineers
Custom Sized
Boiler Ash Handling Conveyor sized to your boiler's actual ash volume, not a generic model.
Complete Design
Complete Ash Handling Conveyor for Boiler design, from ash load assessment to commissioning.
Multiple Configurations
Choice of Submerged, Drag Chain, or Scraper Chain Ash Conveyor configurations.
Durable Construction
Alloy steel chain and flights built for continuous abrasive ash contact.
Protects Combustion
Water seal design that protects boiler combustion efficiency by preventing false air ingress.
Industry Expertise
Experience building an Ash Removal System for Oil Mill Boiler applications specifically, not adapted from power plant equipment.
Recognized Manufacturer
Recognized Ash Handling Conveyor Manufacturer in India for the edible oil and solvent extraction industry.
Single Point of Contact
Single point of contact if you are also sourcing your boiler or Boiler Feeding Conveyor from us, backed by ISO 9001:2015 certification.
Equipment Integrity
Build Quality & Features
The scrubber shell and throat section are fabricated from mild steel, stainless steel, or FRP depending on the corrosiveness of the gas stream your boiler produces.
Internal components exposed to abrasive ash and acidic condensate are built with corrosion-resistant liners so the unit holds up under continuous heavy-duty operation.
The adjustable throat lets operators fine-tune pressure drop dynamically as the gas flow varies with the boiler load, keeping capturing efficiency consistently high.
The spray system is meticulously designed for even liquid distribution across the full gas cross-section, ensuring that no part of the flue gas flow bypasses treatment.
Data Sheet
Technical Specifications
Standard technical parameters for our Wet Scrubber systems. Exact dimensions and configuration depend on your boiler's flue gas flow, temperature, and particulate loading.
| Parameter | Description / Value |
|---|---|
| Scrubber Type | Venturi, Packed Tower, or Multi-Stage Wet Scrubber |
| Gas Handling Capacity | 2,000 to 50,000+ Nm3/hr (custom sizing available) |
| Particulate Removal Efficiency | Up to 99% for particulates above 1 micron |
| Material of Construction | MS, SS 304, or FRP depending on gas composition |
| Pressure Drop | Adjustable throat for low to medium pressure drop |
| Scrubbing Liquid | Water, with optional chemical dosing for acid gas absorption |
| Water System | Recirculating with settling tank, minimal fresh water make-up |
| Mist Elimination | Integrated mist eliminator before stack discharge |
Implementation Protocol
How We Work
As a leading Wet Scrubber Manufacturer in India, our engineering teams design every unit to match your boiler's specific operating profile, ensuring efficient and reliable emission control cycle after cycle.
Emission Assessment
We review your boiler's fuel type, firing rate, flue gas temperature, and particulate loading to determine the scrubber type and size your plant actually needs.
Scrubber Design
Our engineers finalize the throat design or packing selection, liquid circulation rate, and material of construction based on your gas composition and space available.
Fabrication & Commissioning
The scrubber body is fabricated, pressure and leak tested, then shipped and installed at your site with commissioning support to confirm it meets your discharge requirements.
Why Choose Super Techno Engineers
Custom Sized
Scrubber sized to your boiler's actual gas flow and particulate load, not a generic model.
Multiple Configurations
Choice of Venturi, Packed Tower, or Multi-Stage Wet Scrubber configurations.
Rugged Construction
Corrosion-resistant construction in MS, SS, or FRP as per your specific gas conditions.
Guaranteed Compliance
Built to help meet strict CPCB and State Pollution Control Board emission norms safely.
Industry-Specific Experience
Deep experience designing pollution control equipment for solvent extraction and oil mill boilers.
Single Point of Contact
Seamless integration if you are also sourcing your boiler, DT, or extraction equipment from us.
After-Sales Support
Complete after-sales support and spare parts availability to ensure minimal downtime.
Certified Quality
Proudly backed by ISO 9001:2015 certified manufacturing processes and rigorous testing.
Case Studies & Endorsements
Industry Testimonials
"We needed emission control for our husk-fired boiler that our team could manage easily. This Wet Scrubber from Super Techno Engineers brought our particulate levels down to CPCB norms instantly, and the recirculating water system keeps our fresh water usage very low."
Equipment Installation Video
Live Scrubber Commissioning
Support & Information
Frequently Asked Questions
It removes bottom ash from the boiler grate continuously, so the boiler does not need to be shut down for manual ash cleaning.
A Submerged Ash Conveyor uses a water-filled trough to quench hot ash and seal against false air, while a Drag Chain Ash Conveyor moves dry ash through an enclosed trough without a water bath. The right choice depends on your boiler's ash temperature and available water supply.
Yes. Our Boiler Bottom Ash Conveyor systems are sized specifically for the ash volume and firing rate typical of husk and biomass-fired boilers used in oil mill and solvent extraction plants.
Routine checks cover chain tension, flight wear, and water seal level where applicable. Alloy steel construction keeps wear low compared to standard mild steel conveyors handling the same abrasive ash.
Yes. As an Ash Handling Conveyor Manufacturer in India, we size every conveyor around your boiler's actual ash generation rate and boiler house layout rather than supplying a fixed catalog size.
