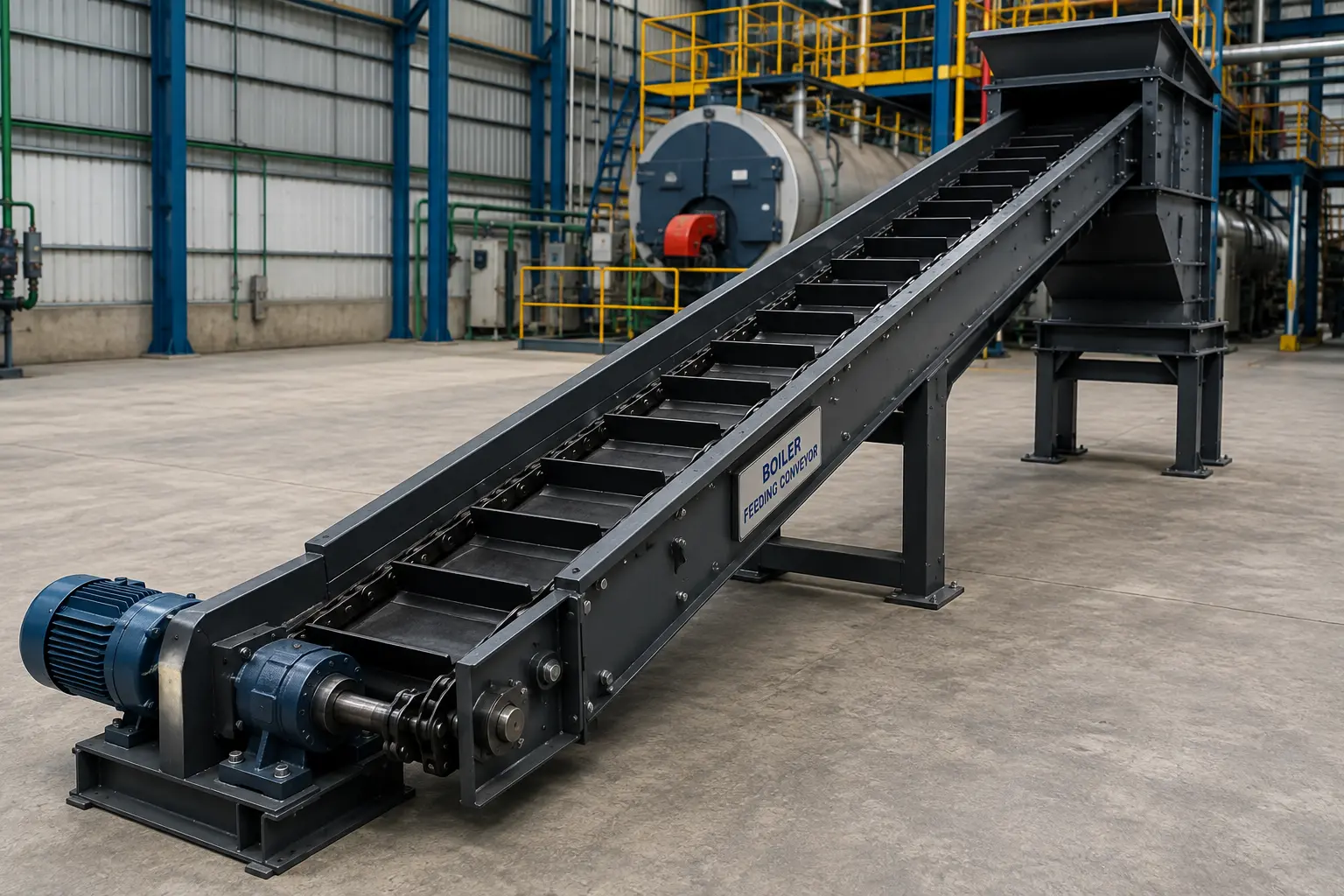

Boiler Feeding Conveyor
Rugged, Continuous Boiler Feeding Conveyor systems built to keep your boiler fed with fuel around the clock, without interruption.
Boiler Fuel Feeding Conveyor
Continuous Steam Generation & Fuel Delivery
Super Techno Engineers is a trusted Boiler Feeding Conveyor Manufacturer serving solvent extraction plants and edible oil units across India. A solvent extraction plant depends heavily on a steady supply of steam, and that steam only keeps coming if the boiler receives a constant, uninterrupted supply of fuel. Any gap or jam in fuel feeding means a drop in steam pressure, which slows down or stops your entire extraction process. This is exactly the role our Boiler Fuel Feeding Conveyor plays, moving fuel from storage to the boiler furnace reliably, shift after shift.
As a specialist Boiler Feeding Conveyor for Oil Mill applications, we manufacture both Screw Conveyor for Boiler and Belt Conveyor for Boiler Feeding systems, along with a dedicated Husk Feeding Conveyor for plants running on rice husk or similar biomass fuel. Whether you need a compact unit for a smaller boiler or an Industrial Boiler Feeding Conveyor built for a large scale plant, Super Techno Engineers designs each system around your actual fuel type, boiler capacity, and layout.
Reliable, Continuous Fuel Delivery
The most important job of a boiler feeding conveyor is simple to state: never let the boiler run short of fuel. As a Continuous Boiler Feeding Conveyor, our systems are built to run for long, unbroken hours, moving fuel steadily from the storage or day bin to the boiler feed point without pulsation or blockage.
Our Screw Conveyor for Boiler applications uses a robust helical screw inside an enclosed trough, which works well for finer, more consistent fuel material and gives precise control over feed rate through variable speed drives. For bulkier or more variable fuel like husk, chips, or briquettes, our Belt Conveyor for Boiler Feeding design uses a wide, supported belt that handles larger volumes with less chance of jamming.
Both designs include self-cleaning features and anti-jam sensors where required, so operators are alerted early if fuel flow slows down, rather than discovering a problem only after the boiler pressure has already started to drop.
-
check_circleVariable speed drive for precise fuel feed rate control.
-
check_circleEnclosed trough or supported belt design to prevent spillage.
-
check_circleAnti-jam and low-fuel level sensing options available.
-
check_circleBuilt for continuous, round the clock operation.
Choosing the Right Conveyor for Your Fuel
Not every boiler fuel behaves the same way, and choosing the right type of conveyor makes a real difference to reliability:
-
syncScrew Conveyor for Boiler Best suited for finer, free-flowing fuel material where precise, controllable feed rate matters, such as fine biomass or processed fuel pellets.
-
conveyor_beltBelt Conveyor for Boiler Feeding Better suited for bulkier or mixed-size fuel, moving larger volumes efficiently with a lower risk of blockage compared to enclosed screw systems.
-
grainHusk Feeding Conveyor A dedicated design for plants burning rice husk, accounting for husk's light bulk density and tendency to bridge, with a feed mechanism built specifically to keep husk moving evenly into the boiler.
Super Techno Engineers reviews your specific fuel type, boiler capacity, and plant layout before recommending the conveyor type that will actually perform best for your operation, rather than defaulting to one standard design.
Heavy-Duty Structural Integrity
An Industrial Boiler Feeding Conveyor works in a demanding environment, often exposed to dust, fuel residue, and continuous mechanical load. The trough, casing, and belt support structure are fabricated from heavy-gauge mild steel, braced to resist wear from abrasive fuel material and to stay structurally sound under constant vibration.
The screw shaft, flighting, and drive components are built from wear-resistant steel, engineered to handle abrasive fuel like husk or biomass chips without rapid wear at the flight edges, a common failure point in lighter-duty conveyors.
We also stock genuine Boiler Feeding Conveyor Spare Parts, including screw flights, belts, bearings, and drive components, so a worn part does not force an unplanned boiler shutdown while a replacement is sourced or fabricated.
Operational Capabilities
Proven Feeding Reliability
Built to keep your boiler fed without interruption, shift after shift.
Consistent feed rate control prevents drops in boiler steam pressure.
Screw, belt, or husk-specific designs matched to your exact fuel type.
Engineered Features
Key Equipment Features & Controls
Equipped with variable frequency drives allowing boiler operators to synchronize fuel feed rates directly with instantaneous plant steam demand and boiler pressure curves.
Forged and continuous helical screw flights made from abrasion-resistant alloy steel ensure positive displacement of fuel without binding, excessive edge wear, or bending under heavy loads.
Belt conveyor variants feature multi-ply, vulcanized, heat-resistant belts with deep troughed roller idlers to prevent spillage and safely handle warm return ash or high-volume biomass chips.
Specially engineered for light rice husk fuel, our integrated agitation fingers break up hopper bridging and rat-holing, maintaining a fluid, continuous flow directly to the boiler furnace.
Complete sealed cover plates with industrial gasketed flanges eliminate fugitive dust emissions and husk particulate in the utility bay, promoting a safe and clean working environment.
Rotation monitoring switches and day-bin level transmitters warn DCS/PLC operators instantaneously if fuel feed stops, preventing starvation before boiler steam pressure collapses.
Premium helical or bevel gearboxes deliver high starting torque to cut through packed fuel columns, paired with rugged external pedestal bearings mounted away from hot troughs.
Ergonomic drop-bottom panels and quick-access inspection ports permit effortless cleaning during fuel changeovers or scheduled boiler maintenance without dismantling casing sections.
Technical Specifications
Standard Specifications
Comprehensive technical parameters for our boiler feeding conveyor systems. Custom configurations are available upon request.
| Parameter | Description / Value |
|---|---|
| Conveyor Type | Screw Conveyor or Belt Conveyor (as per fuel type) |
| Application | Continuous Fuel Feeding to Boiler Furnace |
| Fuel Compatibility | Rice Husk, Biomass, Wood Chips, Coal (as specified) |
| Material of Construction | Heavy-Gauge Mild Steel (Wear-Resistant Options Available) |
| Drive Mechanism | Geared Motor with Variable Speed Control |
| Feed Rate Control | Adjustable, Matched to Boiler Capacity |
| Operating Duty | Continuous, Round the Clock |
| Optional Features | Anti-Jam Sensors, Low Fuel Level Alarms |
Implementation Protocol
How We Work
As a leading Boiler Feeding Conveyor Manufacturer, our engineering teams design every system to match your boiler's fuel demand and your plant's specific fuel type, ensuring uninterrupted steam generation.
Fuel and Capacity Analysis
We evaluate your fuel type, bulk density, and boiler fuel consumption rate to determine whether a screw or belt conveyor design fits your application best, and size the unit accordingly.
Layout and Drive Design
Our engineers design the conveyor path, incline, and drive rating to suit your plant layout, minimizing transfer points where fuel jams commonly occur.
Fabrication & Testing
The trough, casing, or belt structure is fabricated, assembled with the drive unit, and test-run before dispatch. Once cleared, it is shipped and integrated into your plant, with our team supporting commissioning.
Key Advantages
Why Choose Super Techno Engineers
Right Conveyor for Your Fuel Type
We manufacture both Screw Conveyor for Boiler and Belt Conveyor for Boiler Feeding systems, matched to your specific fuel rather than one generic design for all.
Dedicated Husk Feeding Conveyor Design
Built specifically to handle husk's light bulk density and bridging tendency, reducing jam-related downtime and pressure drops.
Proven Boiler Feeding for Oil Mills
Our systems are shaped by real operating conditions across solvent extraction and edible oil plants nationwide.
Built for Continuous Duty
Our Continuous Boiler Feeding Conveyor range is engineered to run without interruption, protecting your boiler's steam output shift after shift.
Heavy-Duty, Wear-Resistant Construction
Trough, flighting, and belt structures are built from reinforced steel to handle abrasive fuel without early failure.
Spare Parts Always Available
Genuine flights, belts, bearings, and drive components are stocked, so a worn part does not mean extended boiler downtime.
Case Studies & Endorsements
Industry Testimonials
"Before installing this Boiler Feeding Conveyor, we were dealing with frequent husk jams that caused our boiler pressure to drop and disrupted our extraction schedule. After switching to this Super Techno Engineers Husk Feeding Conveyor, our fuel feed has been consistent, and we haven't had a single unplanned boiler stoppage since."
Equipment Installation Video
Live Plant
Live Plant Commissioning
Continuous boiler feeding run in solvent facility
Support & Information
Frequently Asked Questions
A Boiler Feeding Conveyor moves fuel such as husk, biomass, or coal from a storage bin to the boiler furnace continuously, ensuring the boiler maintains steady steam pressure for the entire plant.
It depends on your fuel type. A Screw Conveyor for Boiler suits finer, free-flowing material with precise feed control, while a Belt Conveyor for Boiler Feeding handles bulkier or mixed-size fuel with a lower risk of jamming. Super Techno Engineers reviews your fuel and boiler capacity before recommending the right option.
A Husk Feeding Conveyor is designed specifically for husk's light bulk density and tendency to bridge or arch inside a hopper. The feed mechanism and trough design account for this behavior to keep husk flowing evenly into the boiler.
Yes. We size the conveyor type, length, width, and drive rating based on your boiler's actual fuel consumption rate and your plant's layout.
The trough, casing, and belt support structure are usually built from heavy-gauge mild steel, with wear-resistant flighting or belt options available for abrasive fuel types.
Yes. We stock genuine Boiler Feeding Conveyor Spare Parts, including screw flights, belts, bearings, and drive components, so a worn part can be replaced quickly without an extended boiler shutdown.
