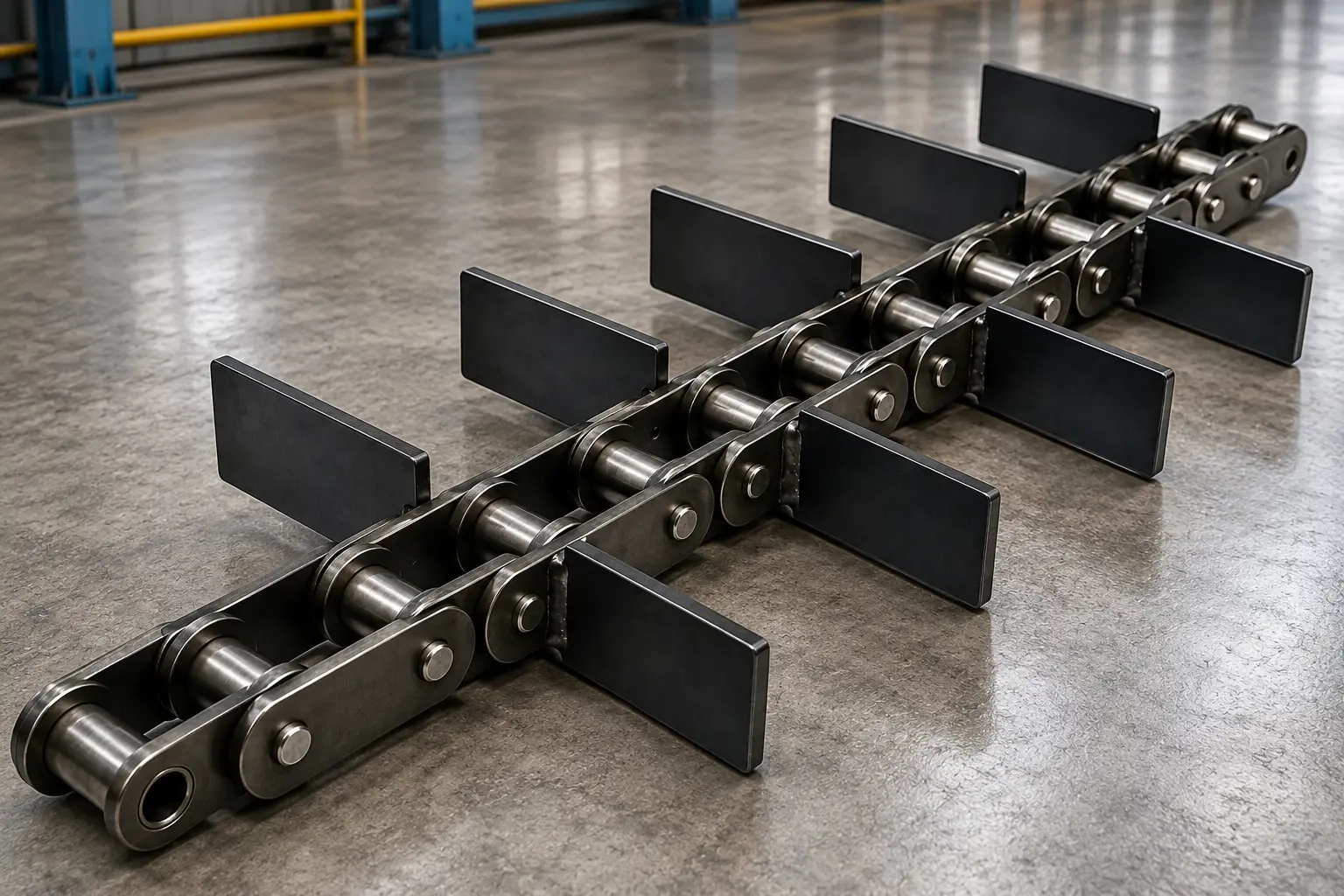

Extractor Chain
High-tensile continuous solvent extractor chains and sprockets engineered to pull heavy material beds smoothly without stretching, snapping, or downtime.
Extractor Chain
Continuous Bed Movement & High-Tensile Reliability
Inside a continuous solvent extractor, the moving bed of seed cake must travel through every stage of the process without stopping or slowing down. The chain that drives this movement carries heavy loads under constant heat and pressure, so it must be built strong enough to work without failure, day after day.
The Extractor Chain manufactured by Super Techno Engineers Private Limited is designed to pull the heavy bed of material through the extractor smoothly, 24 hours a day, without snapping or stretching. Our chain works closely with the extractor chain and sprocket system to keep the whole percolation process running at full efficiency.
As a trusted Extractor Chain Manufacturer, we build our chains for oil seed extraction plants across India and international markets, matching the exact pitch, size, and load rating your extractor needs.
Reliable Moving Bed Extractor Chain Technology
An Extractor Chain for Solvent Extraction Plant must keep the seed bed moving at a steady, controlled speed to allow full solvent penetration and proper oil recovery. Super Techno Engineers Private Limited builds every chain as a High-Tensile Extractor Chain, forged from alloy steel to handle the constant pulling load without failure.
Our Continuous Extractor Chain is designed to run non stop under hot, solvent-filled conditions, keeping the bed height and residence time consistent so your plant gets maximum oil yield with minimum downtime.
-
check_circleHigh-tensile alloy steel construction handles constant pulling load without stretching.
-
check_circleWorks in sync with the extractor chain and sprocket for smooth, even bed movement.
-
check_circleBuilt for continuous, round the clock operation inside the extractor.
Heavy-Duty Structural Integrity
Every Industrial Extractor Chain built by Super Techno Engineers Private Limited is made to handle massive loads of saturated meal without flexing or vibration. The chain links and pins are forged from high tensile alloy steel, giving the chain the strength to pull heavy beds of material smoothly without snapping or stretching, even under 24/7 plant operation.
Our extractor chains are heat treated for extra resistance against wear, abrasion, and mechanical strain, so they keep performing reliably even in hot, solvent-heavy environments.
Operational Capabilities
Proven Extractor Chain Performance
Our Extractor Chain is built from high-tensile alloy steel, giving it the strength to pull heavy loads without stretching or snapping.
Engineered for massive scale, continuous processing in global oil seed extraction plants.
Designed to run smoothly around the clock without requiring frequent adjustment.
Technical Specifications
Engineered Features of Our Extractor Chain
Forged from alloy steel to handle heavy, continuous pulling loads without failure.
Precisely matched components ensure smooth, even movement of the material bed.
Available in band chain design for specific extractor models and configurations.
Keeps the seed cake bed moving at a steady, controlled speed for consistent extraction.
Improves resistance to wear, abrasion, and mechanical impact under hot operating conditions.
Pins, links, and attachments available separately for quick repair and replacement.
Data Sheet
Standard Specifications
Complete technical details for the Extractor Chain and Extractor Band Chain manufactured by Super Techno Engineers Private Limited. Custom pitch and configurations are available on request.
| Parameter | Description / Value |
|---|---|
| Material | Alloy Steel / Stainless Steel |
| Chain Type | V-type, Rail-type, or Bush Chain |
| Pitch | Standard 250 mm, custom pitch available |
| Tensile Strength | High-Tensile, Application Specific |
| Heat Treatment | Yes, for improved wear resistance |
| Application | Continuous Solvent Extractors and Coolers |
| Drive Mechanism | VFD controlled, works with extractor sprocket |
| Usage Industries | Edible Oil Extraction, Chemical, Food Processing, Petrochemical |
Implementation Protocol
How We Work
At Super Techno Engineers Private Limited, our engineering team designs every Extractor Chain to match your specific extractor model and seed prep capacity, ensuring smooth movement and maximum oil recovery.
Feed Analysis
We evaluate the porosity, flaking thickness, and oil content of your prepared seed cake to determine the precise chain pitch and load rating required.
Flow and Load Design
Our engineers calculate the pulling load and residence time needed, matching the chain and sprocket design to your extractor's bed depth and speed.
Fabrication and Testing
The chain is forged, heat treated, and tested for tensile strength before being shipped and integrated into your extraction plant.
Case Studies and Endorsements
Industry Testimonials
"Before installing the Extractor Chain from Super Techno Engineers Private Limited, we faced constant chain stretching and unplanned stoppages in our extractor. Since switching to their high-tensile chain, our plant has run smoothly for months without any adjustment needed."
Extractor Chain Installation Video
Live Plant
Live Plant Commissioning
Watch continuous extractor chain operation in real plant
Support & Information
Frequently Asked Questions
An Extractor Chain is used inside continuous solvent extractors to pull the bed of seed cake or meal through the extraction process, ensuring smooth and continuous material movement.
Chain pitch is the distance between consecutive links, commonly 250 mm in solvent extractors. It affects the chain's size, capacity, and how efficiently it moves material through the extractor.
A High-Tensile Extractor Chain is built from stronger alloy steel and often heat treated, giving it better resistance to stretching, wear, and mechanical strain under heavy continuous loads compared to a standard chain.
Our Extractor Chain is used in edible oil extraction plants, chemical processing, food processing, petrochemical, and other industries that run continuous material handling systems.
Yes, we supply Extractor Chain Spare Parts including pins, links, and attachments, so you can repair or replace worn sections without buying a full new chain.
Yes, Super Techno Engineers Private Limited builds custom pitch, tensile strength, and chain type (V-type, rail-type, or bush chain) to match your specific extractor design.
