Extractor
High-capacity Continuous Extractor systems engineered to maximize oil yield and minimize solvent loss in edible oil plants.
Introduction

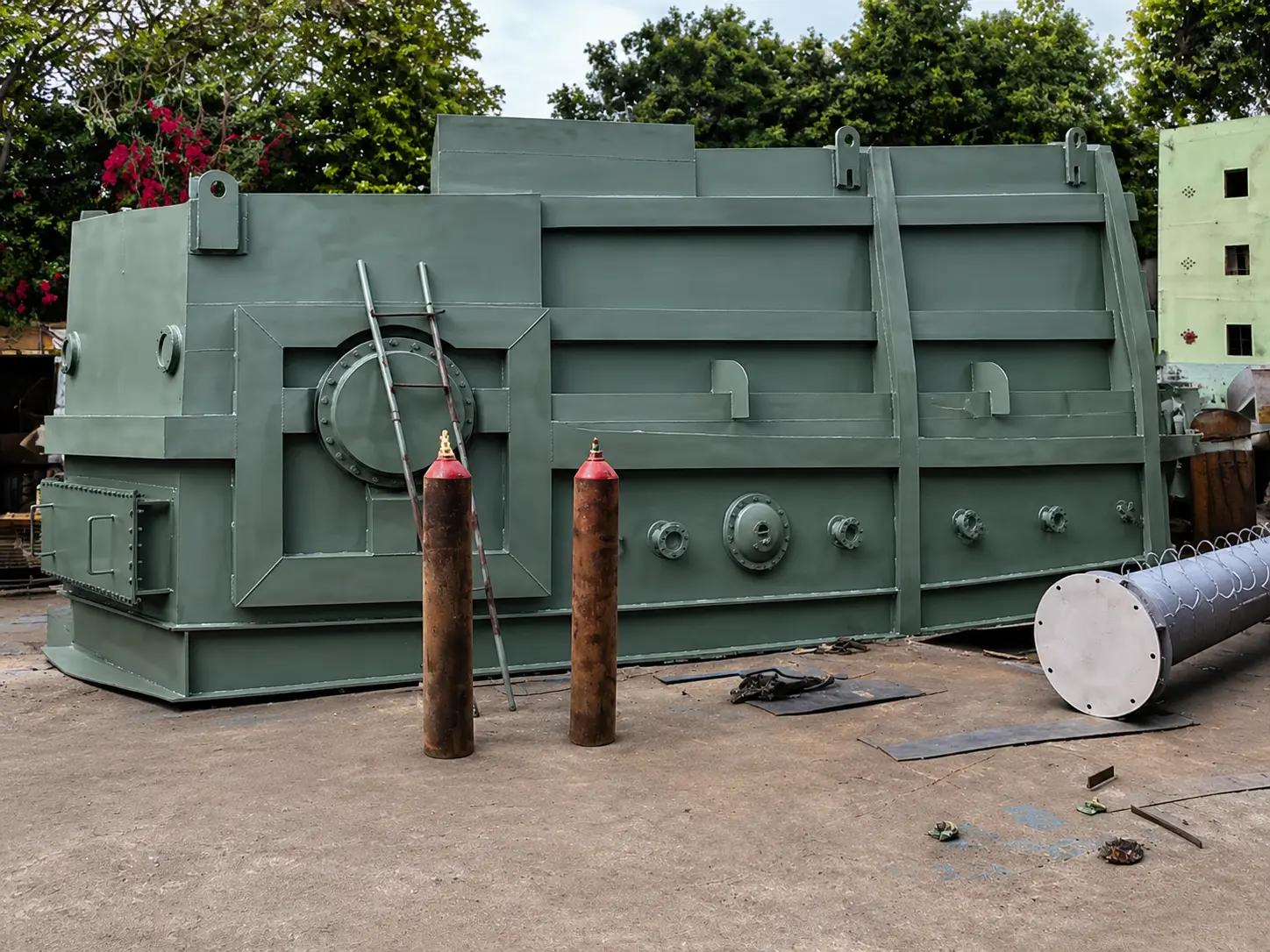

Super Techno Engineers is a leading Extractor Manufacturer in India, building the equipment that sits at the heart of every solvent extraction plant. The Extractor is where oil is separated from prepared seed, flakes, or cake using solvent, and how well this single piece of equipment performs largely decides your plant's overall oil yield, solvent consumption, and running cost.
As a specialist in Continuous Extractor for Solvent Extraction Plant applications, we design and manufacture our units as a proven Deep Bed Extractor and Moving Bed Extractor, built on a Counter-Current Extractor principle for maximum oil recovery. Whether you are processing soybean, cottonseed, sunflower, rice bran, or any other feedstock, our Solvent Extractor for Oil Seed applications is engineered around your specific plant capacity and material characteristics, not offered as one fixed design for every customer.
Built for Every Type of Feedstock
A Solvent Extractor for Oil Seed application has to handle a wide range of material characteristics, from soft, oily flakes to denser expeller cake. Our extractors are engineered to adapt to this range:
Oilseed Flakes
Soybean, cottonseed, and sunflower flakes are processed with a bed depth and spray pattern tuned to their porosity, ensuring thorough solvent penetration without flooding the compartments.
Pre-Pressed and Expeller Cake
Denser cake from groundnut, mustard, or rice bran requires a longer residence time, which our adjustable speed drive accommodates without redesigning the equipment.
High Capacity Continuous Processing
As a Continuous Extractor for Solvent Extraction Plant use, our largest units are built for massive scale operations, running non-stop across global oil seed processing facilities.
Percolation Design, Deep Bed Extraction
The key to a high-yield extractor is maintaining the perfect bed height of the prepared seed or cake as it moves through the equipment. As a Deep Bed Extractor, our units feature an adjustable speed drive that allows operators to tune the residence time precisely based on the material's porosity, ensuring the solvent has enough contact time with the material to extract oil efficiently without slowing down plant throughput.
Being a Moving Bed Extractor, material is carried continuously through a series of compartments while high-volume miscella circulation pumps spray solvent evenly over the bed. This spraying follows a Counter-Current Extractor pattern, where the freshest solvent contacts the most exhausted material just before discharge, and the strongest miscella is drawn off where the material still holds the most oil. This arrangement is what allows a continuous extractor to consistently achieve very low residual oil levels.
-
check_circleSelf-cleaning wedge wire screens prevent choking.
-
check_circleVariable frequency drives (VFD) for precision speed control.
-
check_circleMulti-stage spraying system for uniform solvent distribution.
-
check_circleAdjustable bed height for different seed and cake types.
Heavy-Duty Structural Integrity
Continuous extractors handle massive loads of saturated meal every hour of operation, so build quality is not a place to compromise. The main casing and hoppers are fabricated from heavy-gauge mild steel or stainless steel, braced with structural ribs to eliminate flexing or vibration even under continuous heavy load.
The internal chain and sprocket mechanism is forged from high-tensile alloy steel, engineered to pull the heavy bed of material smoothly around the clock without snapping or stretching, a common failure point in extractors not built to this standard.
We also stock and supply genuine Extractor Spare Parts, including chains, sprockets, wedge wire screens, and seal kits, so a worn component does not mean an extended plant shutdown while you wait for a replacement to be fabricated from scratch.
Operational Capabilities
Proven Extraction Efficiency
Extracts maximum oil, leaving less than 1% residual oil in the discharged meal.
Built for massive scale continuous processing in global oil seed plants.
Negative pressure design ensures completely leak-free hexane processing.
Technical Specifications
Engineered Features
Adjustable speed drive lets operators tune residence time precisely based on material porosity, ensuring solvent has enough contact time to extract oil efficiently without slowing plant throughput.
Multi-stage spraying follows a counter-current pattern, where the freshest solvent contacts the most exhausted material just before discharge, allowing consistently low residual oil levels.
Stainless steel wedge wire screens are designed to self-clean during operation, preventing choking and maintaining consistent drainage across the entire bed.
Variable frequency drive gives precise control over chain speed and residence time, adapting to different seed and cake densities without redesigning the equipment.
Main casing and hoppers are fabricated from heavy-gauge Mild Steel or Stainless Steel, braced with structural ribs to eliminate flexing or vibration even under continuous heavy load.
Internal chain and sprocket mechanism is forged from high-tensile alloy steel, pulling the heavy bed of material smoothly around the clock without snapping or stretching.
Data Sheet
Standard Specifications
Comprehensive technical parameters for our continuous solvent extraction systems. Custom configurations are available upon request.
| Parameter | Description / Value |
|---|---|
| Extractor Type | Continuous, Deep Bed, Moving Bed |
| Extraction Principle | Counter-Current Percolation |
| Processing Capacity | 50 TPD to 1500+ TPD (Tons Per Day) |
| Residual Oil in Meal | Less than 1.0% (< 1%) |
| Solvent Compatibility | Food Grade Hexane (standard) |
| Material of Construction | Carbon Steel / SS 304 (Contact Parts upon request) |
| Operating Pressure | Slight Negative Pressure (Vapor-tight operation) |
| Drive Mechanism | Variable Frequency Drive (VFD) Controlled Heavy-Duty Chain |
| Screen Type | Self-Cleaning Stainless Steel Wedge Wire |
| Miscella Circulation | Multi-Stage High Volume Centrifugal Pumps |
Implementation Protocol
How We Work
As a leading Extractor Manufacturer in India, our engineering teams design every extractor to match your specific seed prep capacity, ensuring perfect percolation and maximum oil recovery.
Feed Analysis
We evaluate the porosity, flaking thickness, and oil content of your prepared seed cake to determine the precise length and bed depth required for the extractor.
Flow & Residence Design
Our engineers calculate the optimum solvent-to-meal ratio, designing the multi-stage spray zones on a counter-current basis to guarantee optimal washing without flooding.
Fabrication & Hydro-Testing
The casing is welded, thoroughly leak-tested, and assembled with the heavy-duty drive chain. Once cleared, it is shipped and integrated into your extraction plant.
Why Choose Super Techno Engineers
Proven Deep Bed and Moving Bed design
Our extraction principle is built on decades of established counter-current extraction technology, refined for consistent, low residual oil performance.
Years of experience as an Extractor Manufacturer in India
Our designs are shaped by real plant conditions across solvent extraction facilities processing a wide range of oilseeds.
Built for your specific feedstock
Bed depth, residence time, and spray pattern are matched to whether you process flakes, expeller cake, or a mix of materials.
Massive scale capability
From 50 TPD to 1500+ TPD, our Continuous Extractor for Solvent Extraction Plant range scales with your production needs.
Vapor-tight, safe operation
Negative pressure design ensures completely leak-free hexane processing throughout continuous operation.
Extractor Spare Parts always available
Genuine chains, sprockets, screens, and seals are stocked, so a worn part does not mean prolonged plant downtime.
Case Studies & Endorsements
Industry Testimonials
"Before installing this Continuous Extractor, we were struggling with high residual oil and constant chain stretching issues. Upgrading to this Super Techno Engineers system solved both immediately. Our residual oil dropped to consistently below 1%, and the heavy-duty drive hasn't required adjustment in 18 months."
Equipment Installation Video
Live Plant Commissioning
Support & Information
Frequently Asked Questions
A Deep Bed Extractor refers to the bed height maintained over the material as it is processed, which improves solvent contact time. A Moving Bed Extractor describes how the material itself is carried continuously through the equipment. Most modern continuous extractors, including ours, combine both features together.
A Counter-Current Extractor design ensures the freshest solvent contacts the most exhausted material near discharge, while the richest miscella is drawn off closer to the feed end. This arrangement extracts more oil using less solvent compared to a simple single-pass spray system.
Yes. We adjust bed depth, residence time, and spray zone design based on whether you are processing a Solvent Extractor for Oil Seed application involving flakes, expeller cake, or a combination of feedstocks.
Our Continuous Extractor for Solvent Extraction Plant range covers 50 TPD to 1500 TPD and above, suited for both mid-size and large scale global oil seed processing facilities.
Yes. We stock genuine Extractor Spare Parts, including chains, sprockets, wedge wire screens, and seal kits, so a worn component can be replaced quickly without an extended plant shutdown.
The extractor casing operates under a slight negative pressure and is fully welded and leak-tested before dispatch. This vapor-tight design keeps hexane vapor completely contained even during continuous, round the clock operation.
