Solvent Condensers
Shell and Tube Solvent Condenser systems built for maximum hexane vapor recovery and minimum solvent loss in extraction plants.
Introduction
Super Techno Engineers is a trusted Solvent Condenser Manufacturer serving solvent extraction plants and edible oil units across India. In every solvent extraction process, hexane vapor is generated at multiple stages, from the extractor and desolventizer toaster to the distillation column. If this vapor is not condensed back into liquid solvent efficiently, the plant loses solvent, wastes energy, and can face safety concerns. A Solvent Condenser is the equipment that solves this problem, turning hexane vapor back into liquid so it can be reused in the process.
As a specialist Solvent Condenser Manufacturer in India, we build our units as a dependable Solvent Recovery Condenser and reliable Hexane Vapor Condenser for every major vapor stream in your plant. Whether you need a Condenser for Solvent Extraction Plant use at the main distillation stage or a smaller unit for vent gas recovery, our Shell and Tube Solvent Condenser design is engineered around your plant's actual vapor load and cooling water availability, not a fixed one size fits all product.
Where the Condenser Fits in Your Plant
A solvent extraction plant does not rely on a single condenser for every job. Different vapor streams need condensers sized and positioned for their specific duty:
Main Solvent Recovery Condenser
Handles the primary hexane vapor coming from the distillation column, condensing the largest share of solvent vapor generated in the plant and returning it to the solvent storage tank for reuse.
DT Vapor Condenser
Condenses vapor coming off the desolventizer toaster, an important Hexane Vapor Condenser application since this vapor stream carries a significant portion of the solvent used in the extraction process.
Vent Gas Condenser
A smaller, final-stage condenser that recovers any remaining trace of solvent vapor from vent lines before the gas is released, minimizing solvent loss to the lowest possible level.
Each of these units shares the same core Shell and Tube Solvent Condenser construction, but the tube surface area and cooling water flow rate are specified separately based on the actual vapor load at that point in the process.
Efficient, Leak-Free Vapor Recovery

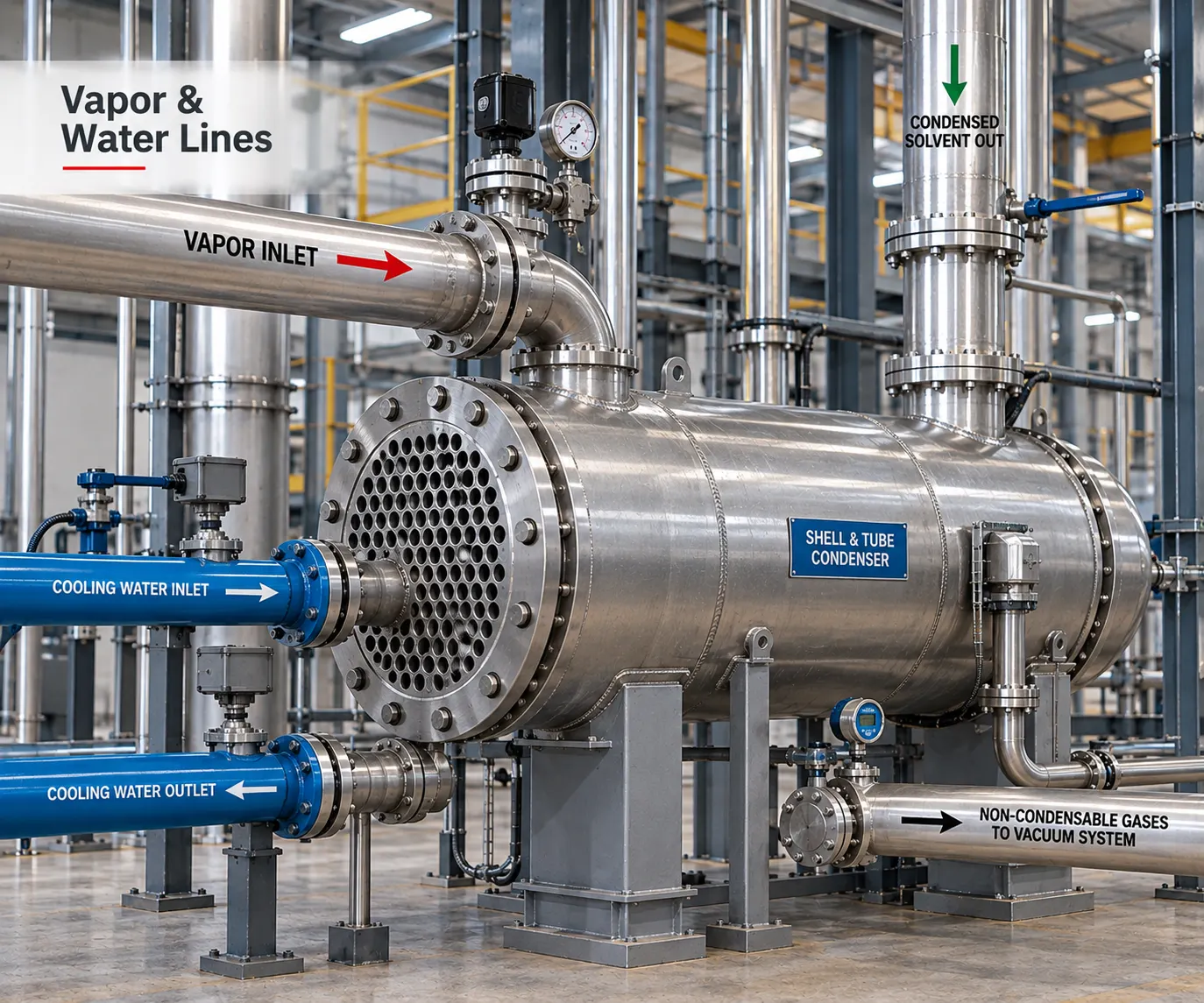

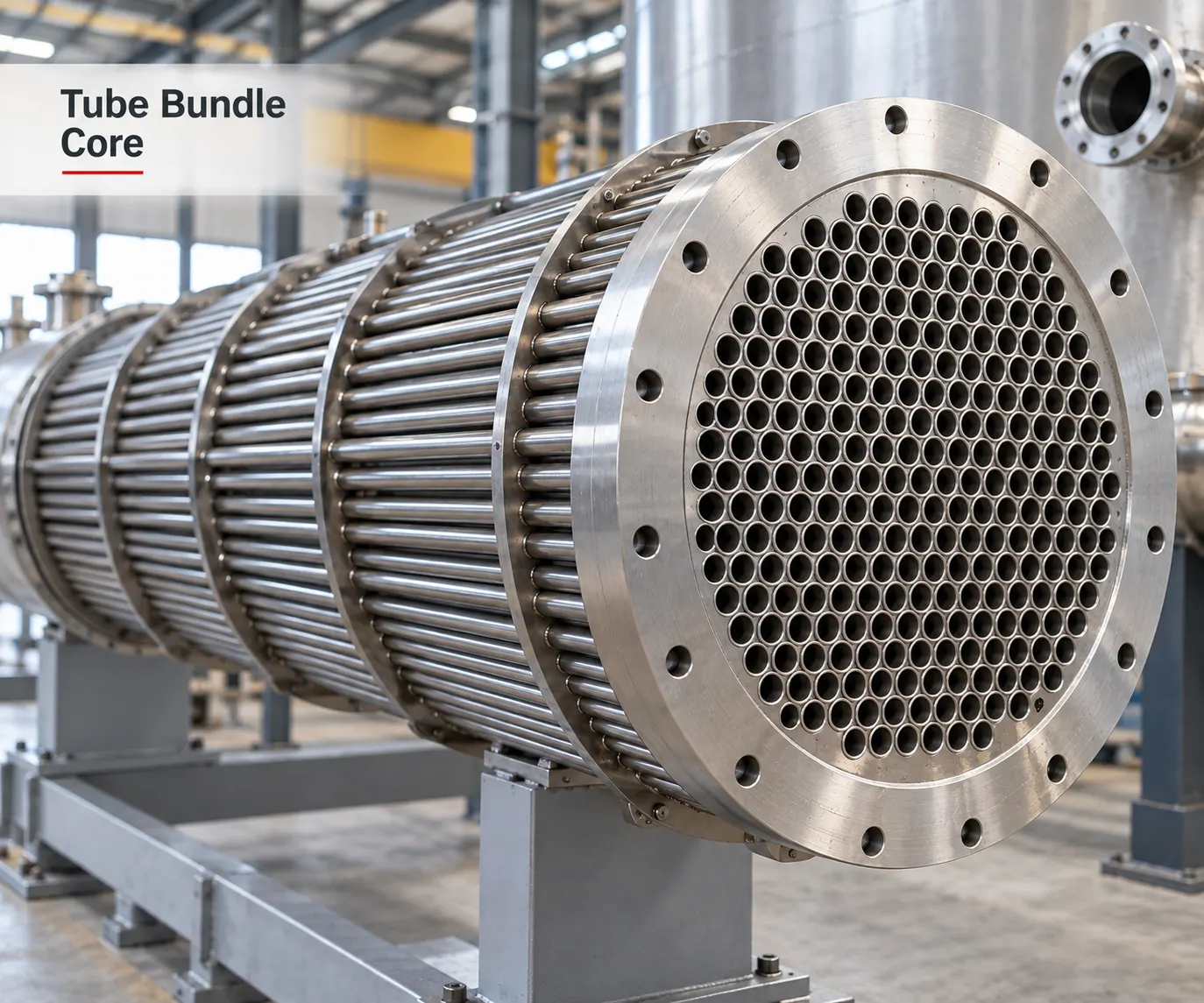

The core function of a solvent condenser is to bring hexane vapor into contact with a cooling surface long enough for it to lose heat and turn back into liquid, without allowing any vapor to escape to the atmosphere in the process. Our Shell and Tube Solvent Condenser design passes cooling water through a tube bundle while hexane vapor flows around the tubes, giving a large surface area for heat transfer within a compact footprint.
As a Hexane Vapor Condenser, the unit is built to handle varying vapor loads through the day without losing condensing efficiency, since a plant's vapor generation naturally changes with feed rate and ambient conditions. The tube layout and baffle spacing are designed to keep vapor velocity in the right range, avoiding both incomplete condensation and unnecessary pressure drop.

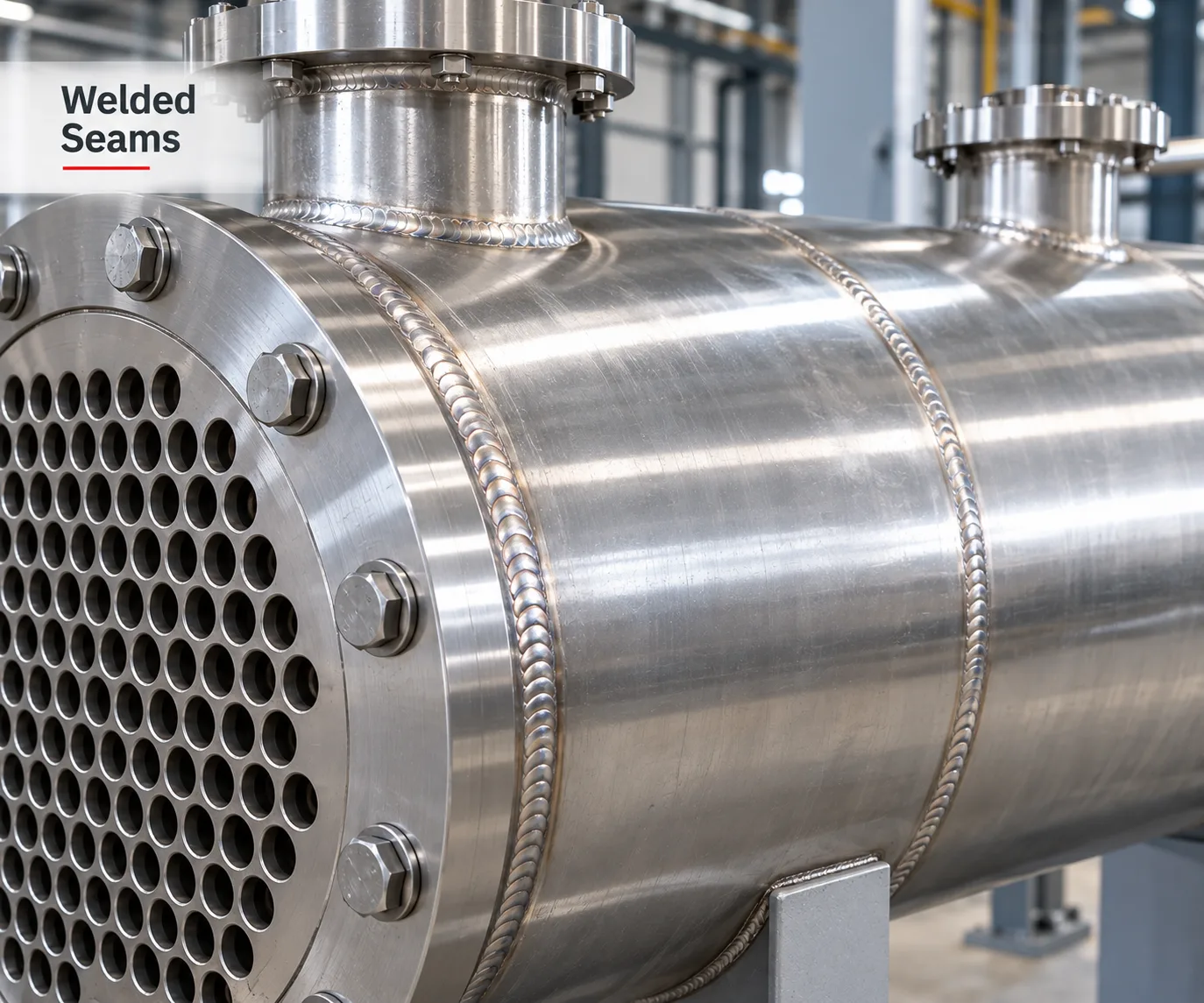

Every joint and tubesheet connection is welded and pressure tested, since even a small leak point in a condenser means direct solvent loss and a potential safety hazard. This is a detail we do not compromise on, regardless of the size of the unit.
-
check_circleShell and tube design for large surface area in a compact size.
-
check_circleConsistent condensing efficiency across varying vapor loads.
-
check_circlePressure-tested joints to prevent solvent vapor leakage.
-
check_circleCorrosion-resistant tube material suited for continuous hexane service.
Heavy-Duty Structural Integrity
A Condenser for Solvent Extraction Plant use runs continuously alongside the extraction process, handling flammable vapor at varying pressure for long hours every day. The shell and tube bundle are built from carbon steel or stainless steel depending on your process requirement, chosen to resist corrosion from continuous hexane vapor exposure over years of service.

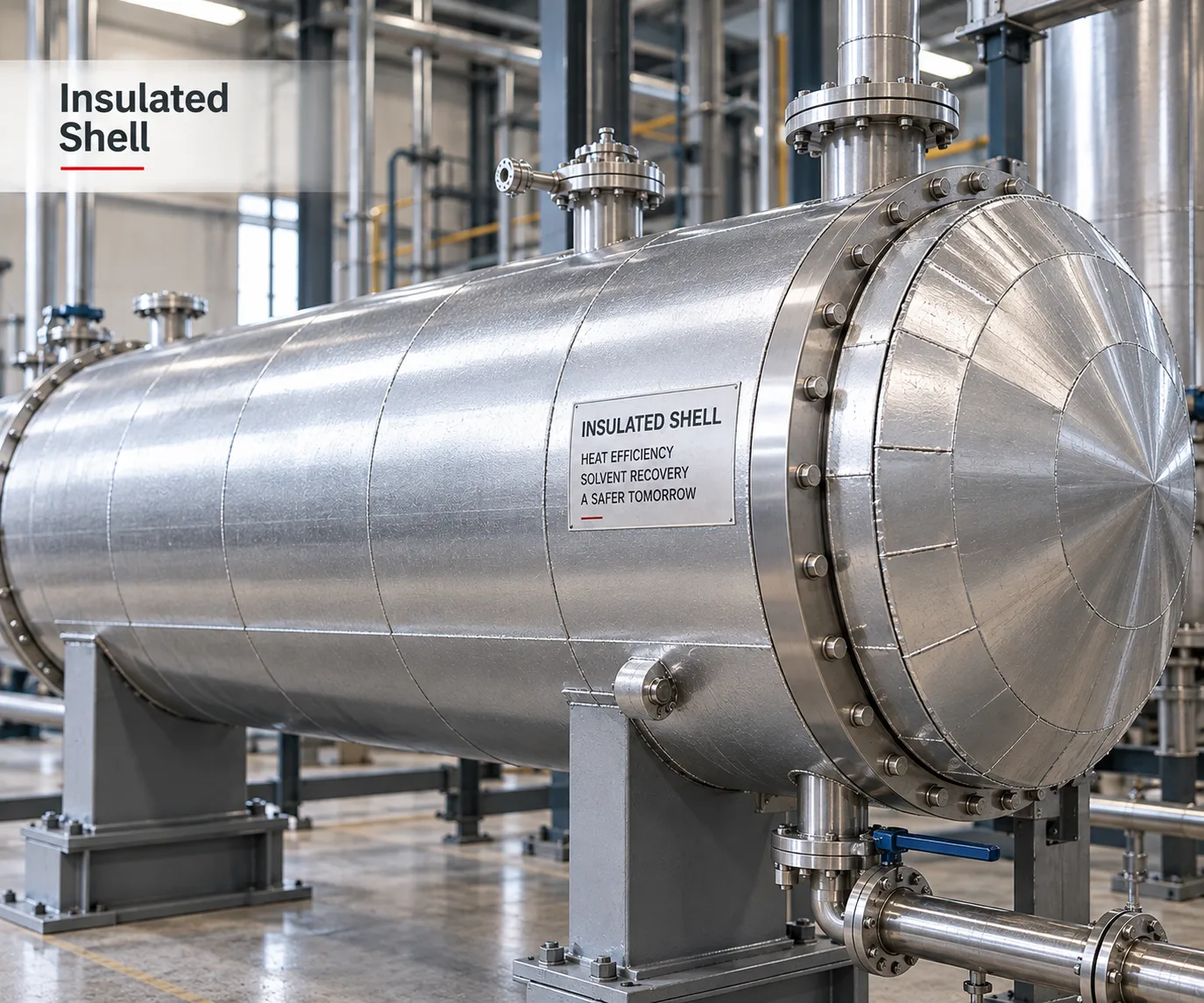

Tube-to-tubesheet joints are carefully welded and pressure tested to prevent cross-contamination between the vapor side and the cooling water side, which is critical for both safety and consistent solvent recovery. The outer shell and connecting lines are designed to minimize heat gain from the surroundings, keeping condensing performance stable.
Support saddles and mounting brackets are built to handle thermal expansion without stressing the tube bundle, extending the working life of the unit and reducing the risk of tube failure over time.
Operational Capabilities
Proven Condensing Performance
Fully enclosed shell and tube design keeps solvent vapor completely contained.
Built to run non-stop alongside your extraction process without performance drop.
Large tube surface area ensures maximum hexane vapor condensation.
Technical Specifications
Engineered Features
Cooling water flows through a tube bundle while hexane vapor flows around the tubes, giving large surface area for heat transfer within a compact footprint, ensuring efficient condensation.
Tube layout and baffle spacing are designed to keep vapor velocity in the right range across varying vapor loads, avoiding both incomplete condensation and unnecessary pressure drop.
Every joint and tubesheet connection is welded and pressure tested before dispatch, since even a small leak point means direct solvent loss and a potential safety hazard.
Shell and tube bundle are built from Carbon Steel or Stainless Steel (SS 304), chosen to resist corrosion from continuous hexane vapor exposure over years of service.
Tube-to-tubesheet joints are carefully welded and pressure tested to prevent cross-contamination between the vapor side and cooling water side, critical for both safety and consistent solvent recovery.
Support saddles and mounting brackets are built to handle thermal expansion without stressing the tube bundle, extending the working life of the unit and reducing risk of tube failure.
Data Sheet
Standard Specifications
Comprehensive technical parameters for our solvent condenser systems. Custom configurations are available upon request.
| Parameter | Description / Value |
|---|---|
| Condenser Type | Shell and Tube, Water Cooled |
| Application | Main Distillation Vapor, DT Vapor, Vent Gas Recovery |
| Material of Construction | Carbon Steel / SS 304 (Contact Parts upon request) |
| Cooling Medium | Cooling Water (Fresh or Recirculated) |
| Tube Layout | Optimized for Maximum Condensing Efficiency |
| Solvent Compatibility | Food Grade Hexane (standard) |
| Operating Condition | Vapor-tight, Suitable for Flammable Solvent Duty |
| Testing | Hydraulically Pressure Tested Before Dispatch |
Implementation Protocol
How We Work
As a leading Solvent Condenser Manufacturer in India, our engineering teams design every unit to match your plant's vapor load and available cooling water, ensuring maximum solvent recovery and minimal loss.
Vapor Load Analysis
We evaluate the vapor generation rate at each stage of your plant, along with available cooling water temperature and flow rate, to determine the correct condenser size for each application.
Thermal & Material Design
Our engineers calculate the tube layout and select the material of construction best suited to your process conditions, ensuring efficient condensation without excessive pressure drop.
Fabrication & Pressure-Testing
The shell and tube bundle are welded, pressure tested, and inspected before final assembly. Once cleared, the condenser is shipped and integrated into your extraction plant, with our team available to support commissioning.
Why Choose Super Techno Engineers
Purpose-built for every vapor stream
We manufacture dedicated condensers for main distillation vapor, DT vapor, and vent gas recovery, each sized for its specific duty rather than one generic design for all.
Years of experience as a Solvent Condenser Manufacturer in India
Our designs are shaped by real plant conditions across solvent extraction and edible oil units nationwide.
Custom-matched thermal sizing
Tube surface area and cooling water flow rate are selected based on your plant's actual vapor load, not a fixed standard size.
Maximum solvent recovery
Our Shell and Tube Solvent Condenser design is built to minimize hexane loss at every stage of the process.
Vapor-tight, safe operation
All joints are welded and pressure tested to keep flammable solvent vapor fully contained.
Reliable after-sales support
We provide spare parts and technical support, so a maintenance issue does not turn into extended plant downtime.
Case Studies & Endorsements
Industry Testimonials
"Before installing this Solvent Condenser, we were losing a noticeable amount of hexane through incomplete condensation at our DT vapor line. After upgrading to this Super Techno Engineers system, our solvent loss dropped significantly, and our overall recovery efficiency improved right from commissioning."
Equipment Installation Video
Live Plant Commissioning
Support & Information
Frequently Asked Questions
A solvent condenser cools hexane vapor generated during the extraction process and turns it back into liquid solvent, so it can be reused in the plant instead of being lost to the atmosphere.
A main Solvent Recovery Condenser handles the largest share of vapor coming from the distillation column, while a vent gas condenser is a smaller, final-stage unit that recovers any remaining trace of solvent vapor before gas is released, minimizing overall solvent loss.
Yes. We size the tube surface area and cooling water requirement based on your plant's actual vapor generation rate at each stage of the process.
The shell and tube bundle are usually built from Carbon Steel or Stainless Steel (SS 304), chosen based on your process fluid and cooling water quality.
The design fully encloses the vapor side and cooling water side within a sealed shell, and all joints are welded and pressure tested before dispatch. This keeps flammable hexane vapor completely contained during operation.
By condensing and recovering hexane vapor efficiently, the condenser reduces the amount of fresh solvent your plant needs to purchase over time. This directly lowers your ongoing raw material cost and improves overall plant profitability.
