Spent Earth Extraction Plant
Maximize refinery profitability by transforming hazardous waste into high-value industrial oil. Super Techno Engineers' engineered systems recover up to 98% of retained oil from Spent Bleaching Earth (SBE), with an industry-leading solvent loss of less than 2 Liters/Ton.
Turning Liabilities Into Lucrative Assets .
Every edible oil refinery produces a large amount of Spent Bleaching Earth (SBE). This waste usually contains 20% to 40% oil. If it is not treated properly, SBE can cause serious problems. The oil trapped inside can heat up on its own and may catch fire during storage. It also means valuable oil is wasted, leading to a loss of money for the refinery. A dedicated Spent Earth Extraction Plant changes that equation. Instead of paying disposal fees on hazardous waste, refineries recover technical grade oil that feeds directly into the biodiesel and soap manufacturing industries, and they walk away with dry, safe earth that has real resale value.
The Commercial Advantage
Installing a Spent Bleaching Earth Extraction Plant does two things at once. It removes the ongoing cost and liability of hazardous waste disposal, and it opens a new revenue line from oil that was previously thrown away. The recovered technical grade oil is in steady demand as feedstock for biodiesel producers and soap manufacturers, which means the plant can pay for itself faster than most refiners expect. The desolventized earth that comes out the other end is fully dry and safe to transport. It works well as a binder in cement kilns and brick manufacturing, so refineries can move toward true zero waste to landfill status instead of just managing waste more cheaply.
Overcoming SBE Challenges
Standard extraction equipment was never designed for Spent Bleaching Earth. It is an ultra fine, cohesive powder that bridges inside hoppers and blocks conventional mesh screens, which stops solvent from percolating through the bed properly.
Super Techno Engineers builds its extraction systems around this specific problem. Mass flow silos, variable speed anti bridging rotary valves, and self cleaning wedge wire screens work together to keep material moving. The result is continuous, choke free percolation and clear miscella output, with no unplanned downtime from blocked screens or bridged hoppers.
Step 1: How Our Spent Bleaching Earth Processing Plant Works
Specialized SBE Extractor
The process starts with a fully sealed, vapor tight feeding system blanketed with inert nitrogen, so the Spent Bleaching Earth enters the extractor safely with no exposure risk. Because SBE has low porosity, our Moving Bed Extractor uses a shallow, precisely calibrated bed depth with controlled agitation, which lets hexane wash through the material evenly instead of channeling through weak spots.
This is what makes our system a genuine Spent Bleaching Earth Solvent Extraction Plant rather than a repurposed oilseed extractor. A heavy duty, V shaped wedge wire filtration deck keeps the outgoing miscella free of fine clay particles, which protects the distillation equipment downstream and keeps maintenance costs low over the life of the plant.
Competitive Advantage
Engineered Features
Self cleaning wedge wire screens and hydrocyclones for superior miscella clarity
Mass flow silos with pneumatic anti bridging blasters for smooth, uninterrupted powder feed
Dust free Desolventizer Toaster (DT) with specialized wet scrubbing systems
Industry leading solvent recovery, keeping losses below 2 liters per ton
Inert nitrogen blanketing system that eliminates explosion hazards
Advanced economizers that cut steam and energy consumption
Zero Liquid Discharge (ZLD) configurations available for strict environmental compliance
Free flowing, completely dry earth output, ready for immediate industrial transport

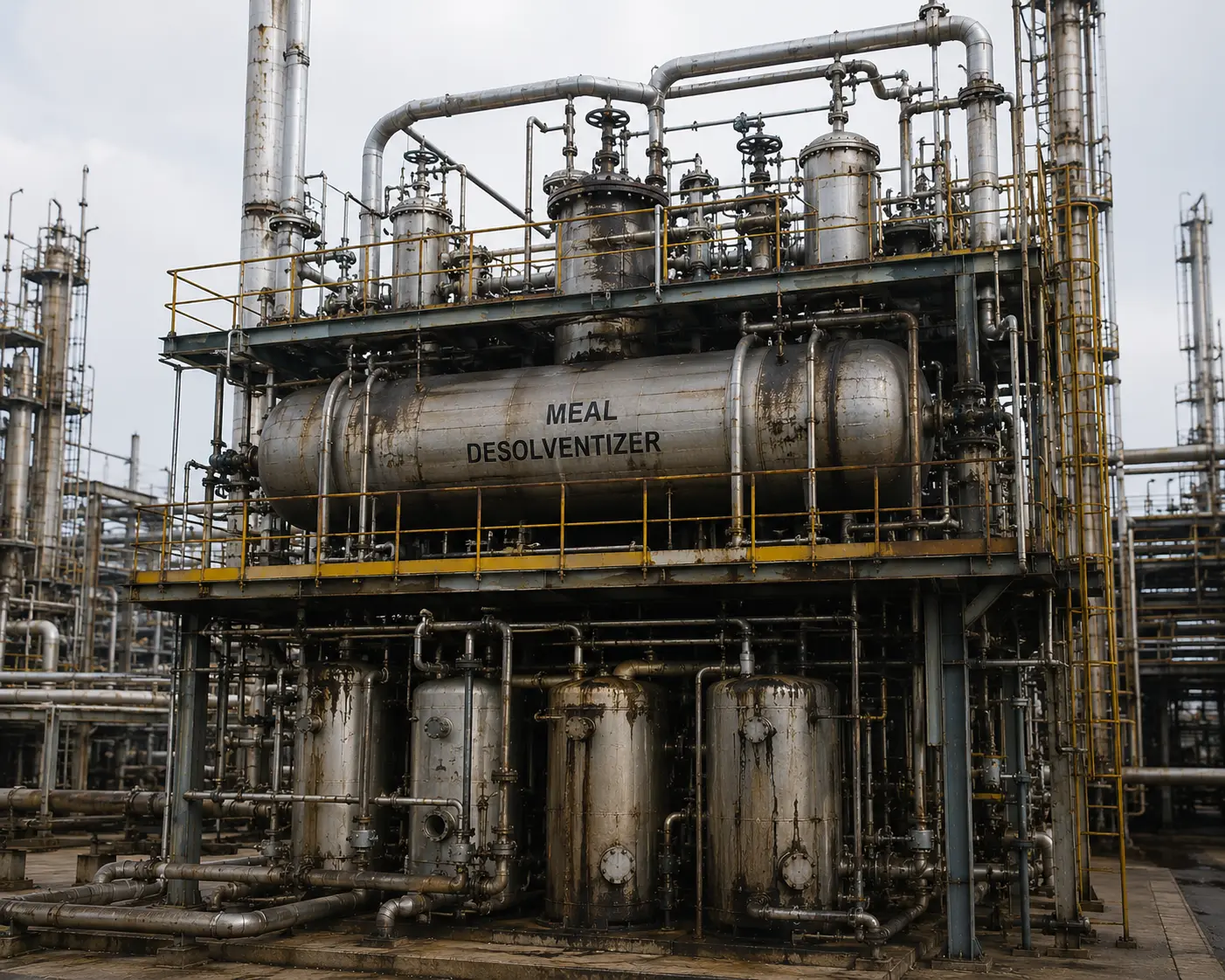

Earth Desolventization and Dust Control
Once the oil has been extracted, the wet, solvent laden earth moves into the Desolventizer Toaster (DT). Because the clay is so fine, our DT uses angled sweeping arms and low velocity vapor domes to vaporize the hexane through gentle steam sparging, without lifting dust into the exhaust lines.
The recovered solvent vapors then pass through a high efficiency wet scrubber that traps any stray clay fines before condensation. What comes out is earth that is completely free of solvent, with residual levels held strictly below 50 PPM. It is free flowing and ready for direct sale to cement manufacturers, or for safe landfill disposal if that is the preferred route.
- check_circle Vapor tight sealing across every discharge point
- check_circle Integrated dust catchers and wet scrubbers that prevent condenser fouling
- check_circle Residual solvent in de-oiled earth kept below 50 PPM at all times

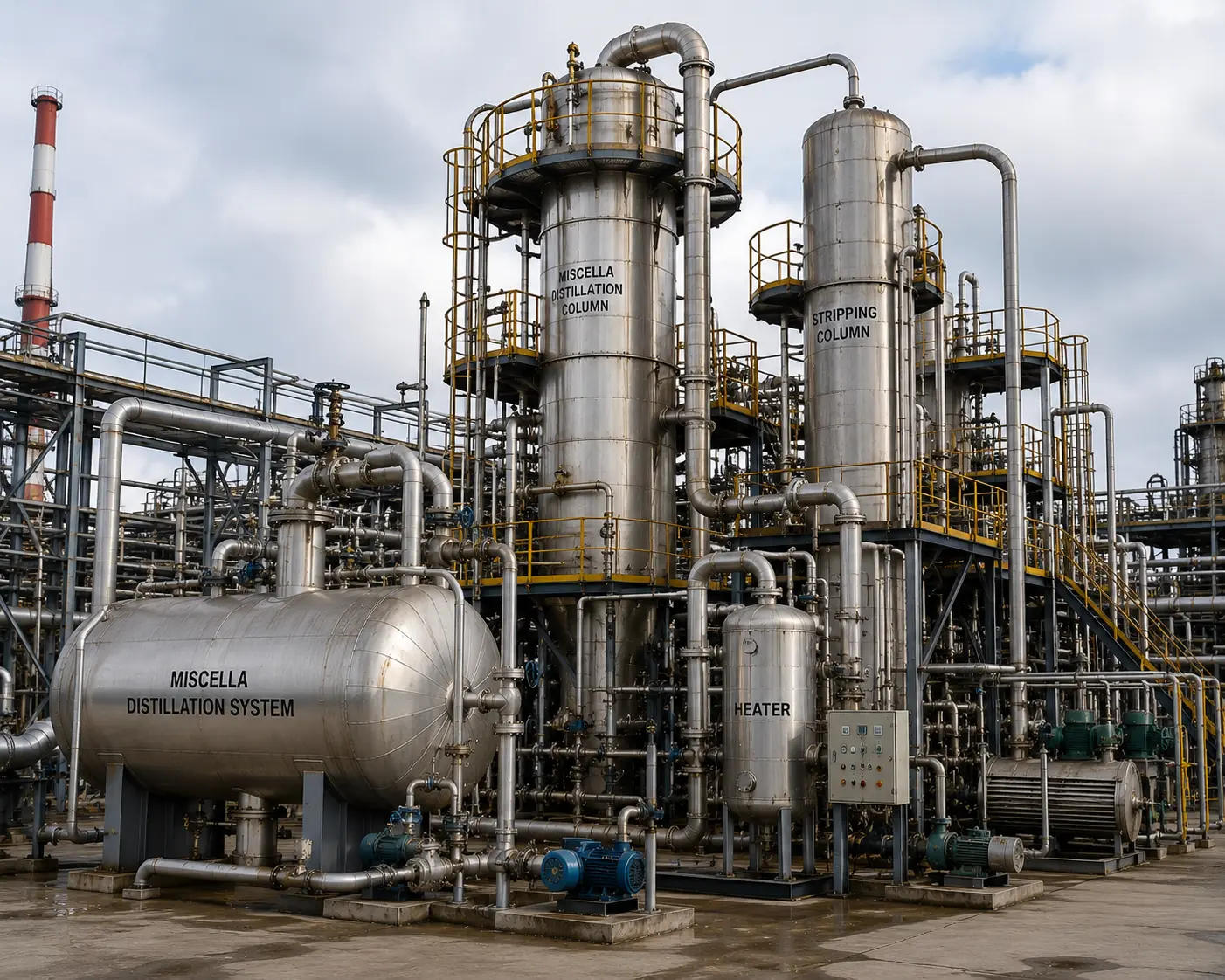

Miscella Clarification, Distillation, and Oil Recovery from Spent Bleaching Earth
The miscella, which is the mixture of hexane and recovered oil, tends to carry fine clay particles if it is not handled properly. Before it reaches the distillation stage, our system routes it through hydrocyclones and bag polish filters to strip out these fines completely.
From there, the clarified miscella passes through low temperature falling film evaporators and vacuum operated stripping columns. High velocity liquid flow through these units prevents sludge from building up inside the heat exchanger tubes, which keeps the system running efficiently between maintenance cycles. What you get at the end is pure, high grade technical oil, recovered through a closed loop solvent system that keeps the entire Spent Bleaching Earth Oil Recovery Plant running at maximum profitability.
This closed loop approach to oil recovery from Spent Bleaching Earth is what separates a well engineered plant from a basic extraction unit. Every liter of solvent that gets recovered and reused directly improves your plant's operating economics.
Technical Capacities & Benchmarks
Performance Metrics
Custom-scaled plants available for refineries processing anywhere from 30 to 500 tons of waste earth daily.
Highly efficient percolation brings the retained oil content in the discarded clay down to strictly below 1.5%.
Advanced condensation and vapor scrubbing keeps hexane losses to an industry-leading low of less than 2 Liters per Ton.
Related Turnkey Solutions
Super Techno Engineers also delivers complete turnkey solutions for oil refineries, including:
Edible Oil Refinery Plant
Soya Lecithin Plant
Physical Refining Systems
Oilseed Solvent Extraction
The Super Techno Advantage
Why Choose Super Techno Engineers as Your Spent Earth Extraction Plant Manufacturer
When you are putting your refinery's waste and revenue on the line, the manufacturer you pick matters as much as the equipment itself. Here is what sets Super Techno Engineers apart as a Spent Bleaching Earth Oil Recovery Plant Manufacturer:
Purpose-built engineering, not adapted equipment.
Our systems are designed from the ground up around the real behavior of Spent Bleaching Earth, rather than repurposed oilseed extraction machinery that struggles with SBE's fine, cohesive texture.
End-to-end delivery.
From process design and equipment manufacturing to installation, commissioning, and after-sales support, we manage the full scope so you deal with one accountable partner instead of coordinating multiple vendors for your Spent Earth Extraction Plant.
Proven performance benchmarks.
With residual oil kept below 1.5% and solvent loss under 2 liters per ton, our plants are built to hit numbers that directly improve your plant's economics from day one.
Flexible capacity planning.
Whether you are evaluating a Spent Earth Oil Extraction Plant for a 30 ton per day operation or a 500 ton per day facility, we scale the design to match your refinery's actual throughput.
Trusted as a full-scope manufacturer.
As a recognized Spent Earth Extraction Plant Manufacturer, our team can walk you through capacity planning, expected recovery rates, and a realistic project timeline based on your specific site conditions.
